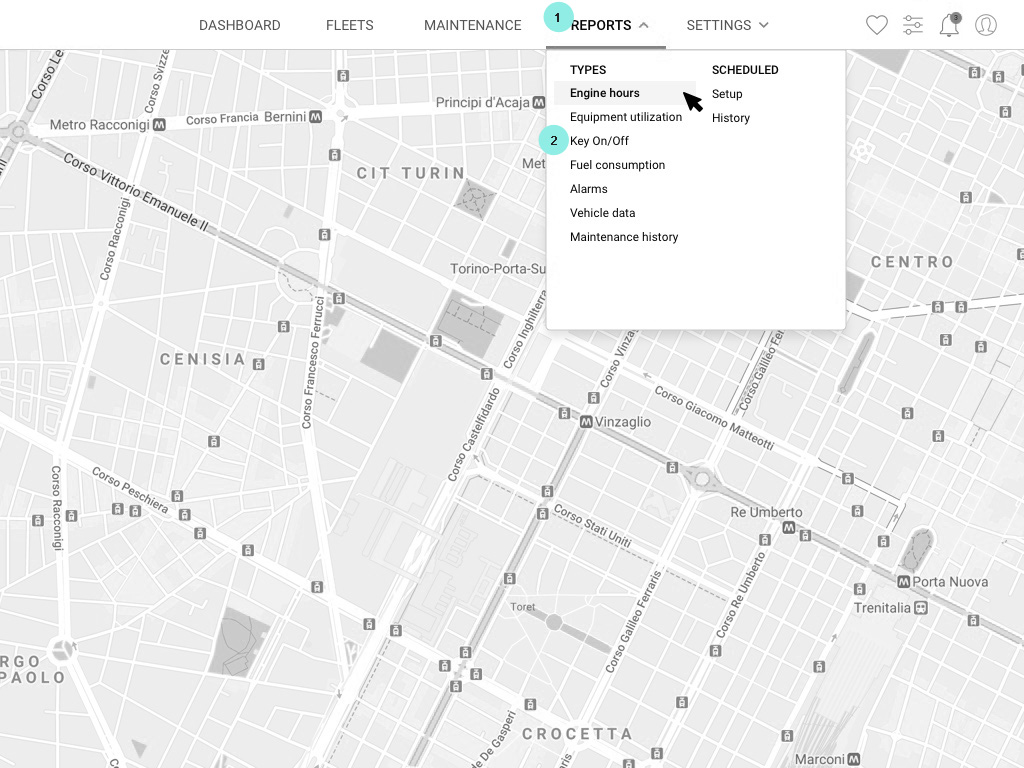

How to get there

Follow the path hereunder to get to the Key on/off report

Menu/Reports 1/Key on/off 2

What is it about

The Key on/off report allows users to check when the equipment has been keyed on or keyed off during a pre-selected amount of time.

The report is generated when key is off and when the device sends the engine off report. This engine off report contains the information about how long the engine has been running before operator turned it off. Each time a new message is delivered to the system, a real time update is provided.

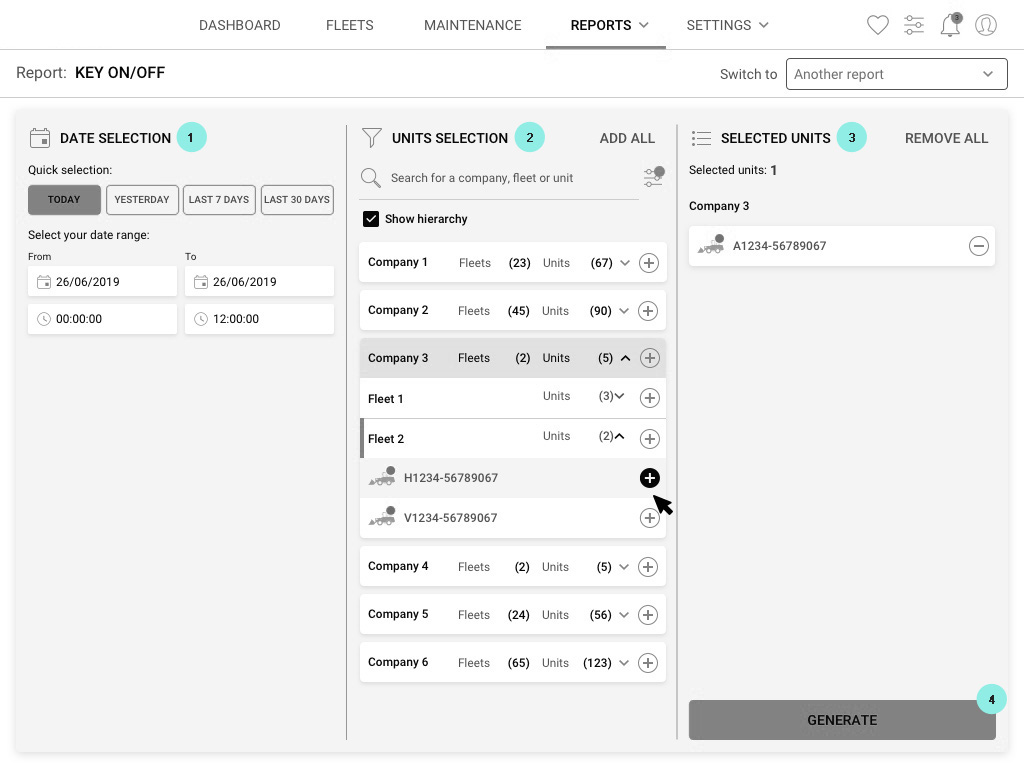

Generate a report

How to choose a time frame, select the unit(s) and display the report

1 To generate the Key on/off report you will need to choose a time frame in the left hand side column. The lapse of time cannot exceed 180 days.

2 Then choose and select one or several unit(s) in the middle column by clicking on the "+" icon. The number selected cannot exceed 20 units.

3 The third and last column gives you an overview of the units you have selected. If you have changed your mind and if you want to remove one or several unit(s) click the "-" icon or the "Remove all" button in the top right corner.

4 Once you have set your mind click "Generate".

You can also use the switch feature directly inside the reports to switch from one report to another with the same unit(s) and the same time period selection.

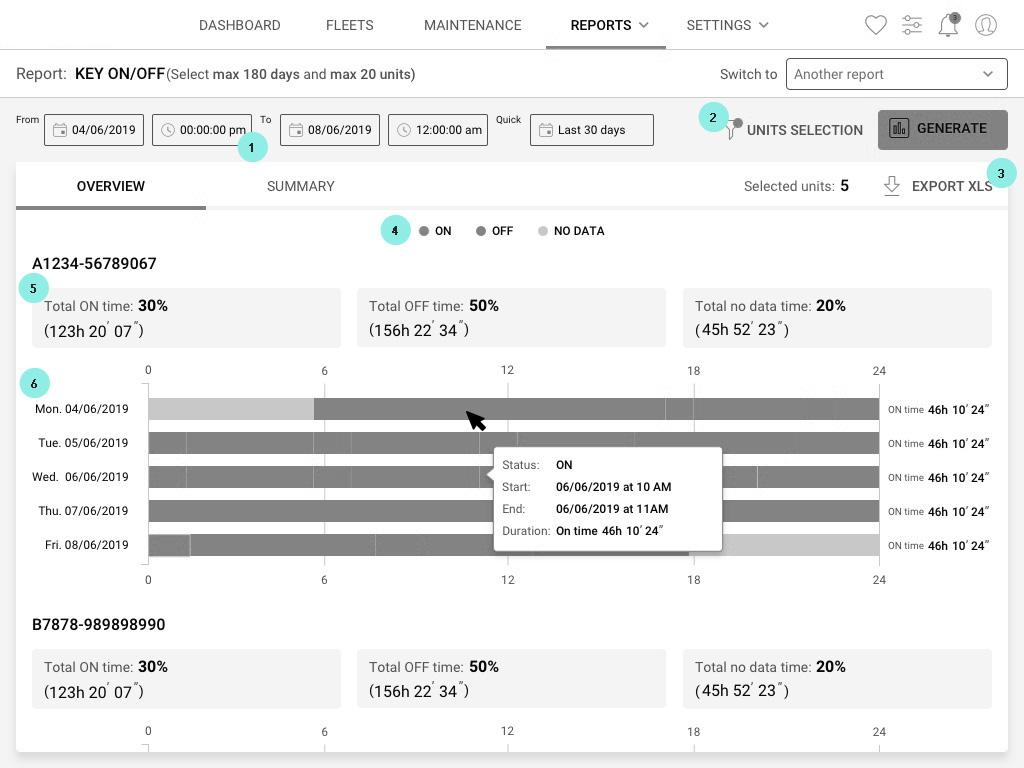

The report's content - Chart

First of all, let's recap the tools you will find in all the reports:

1 In the top left corner of the page you will find the time frame recap. You can change the time frame directly there. If you do so, don't forget to click "Generate" to update the report content.

2 The unit(s)'s selector is next to the time frame recap. As for the time frame if you add or remove some units don't forget to click "Generate" to update the report's content.

3 Click "Export XLS" to export the report's content on an Excel sheet.


Under the tools you will find the Key on/off chart with the following elements:

4 The legend of the graphical reprensentation.

5 The name of the unit and related data summary for this unit for the lapse of time you have selected.

6 A graphical representation which allows you to understand when the unit was keyed on or keyed off. Use the pointer on the graph to get details!

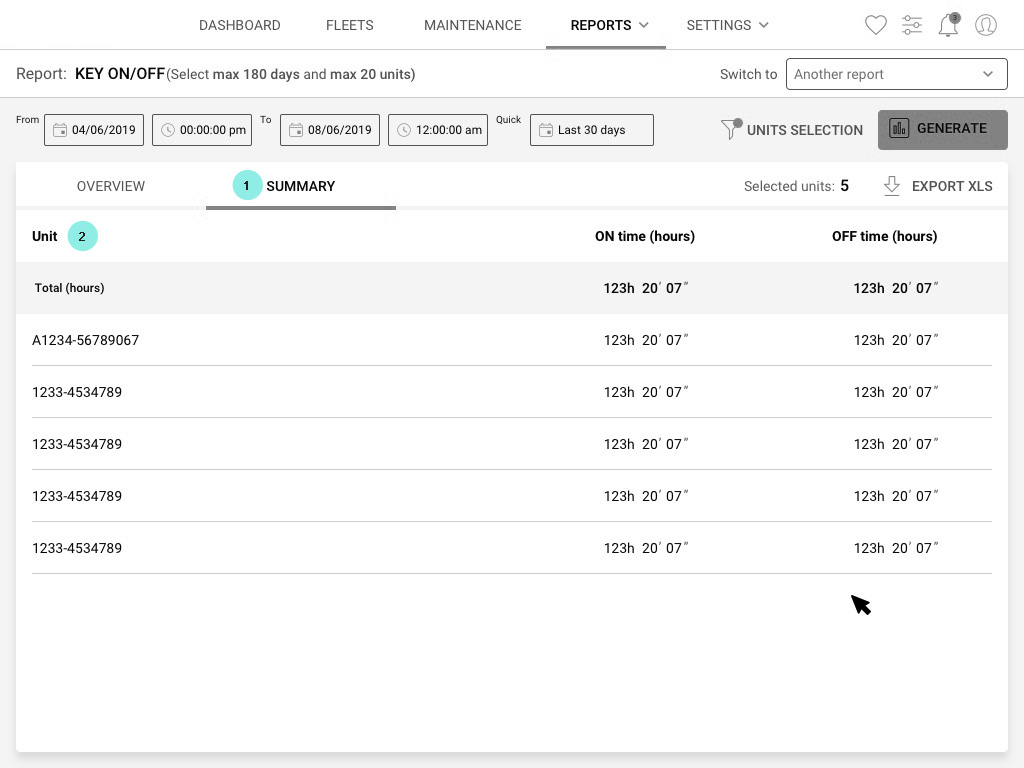

The report's content - Table

1 Click the tab to change the view and to see the report datas in a table.

2 In the table tab, you will find a recap of total time spent on and off as well as the detail for each unit (for the lapse of time pre-selected)
