How to get there

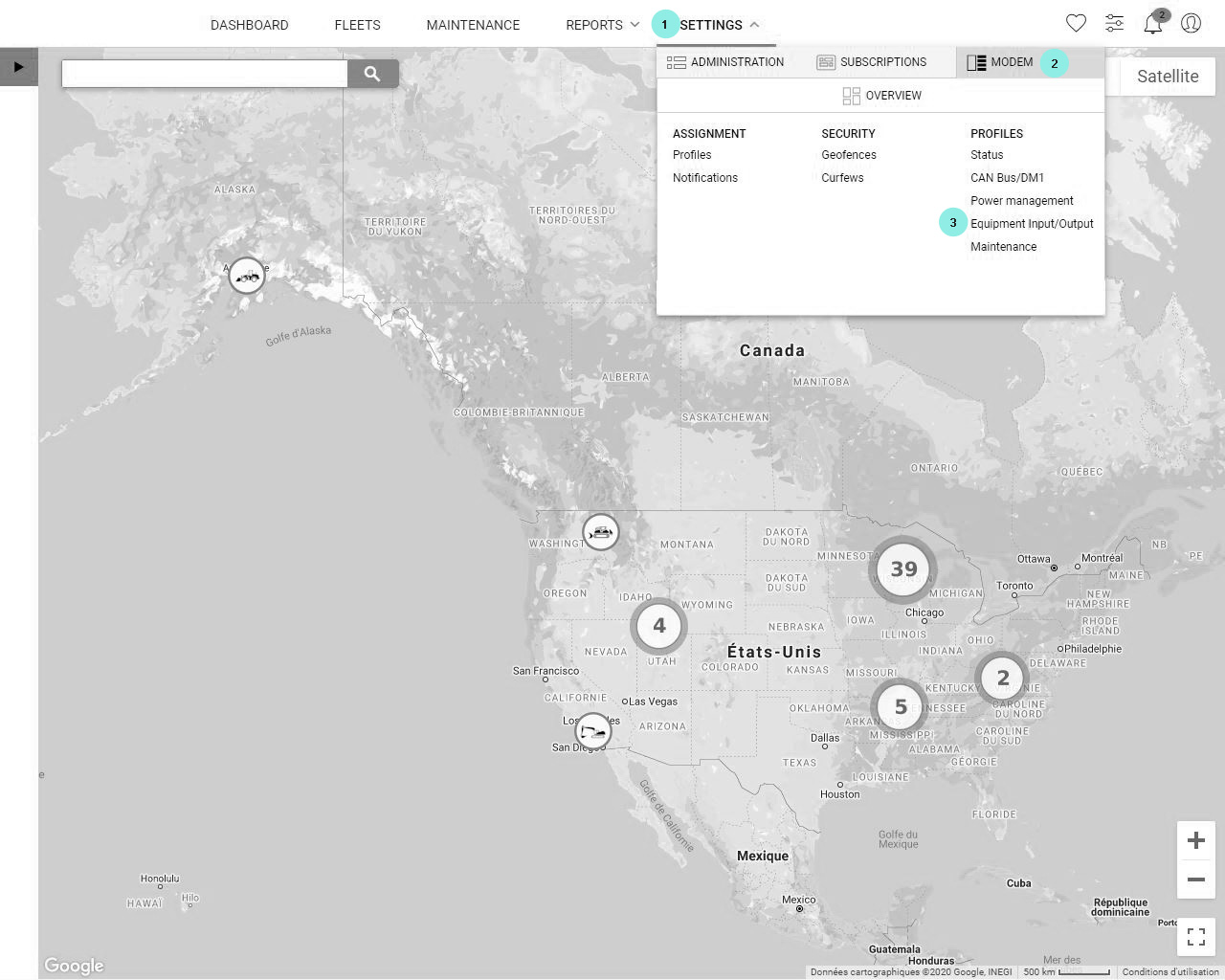

Follow the path hereunder to get to the Equipment Input/Output profiles configuration

Menu/Settings 1/Modem 2/Equipment Input/Output 3

Caution! Depending on your role on SiteWatch you might not see this section.

What is it about

In this section you can create new Equipment Input/Output profiles or edit them.

Once your profile is ready, you can also associate it to one or several machine(s) directly from this section of SiteWatch.

But we strongly recommend you to use default profiles! Our default profiles can be updated directly by us so that we can guarantee precision and correctness.
Instead, your customized profiles cannot be updated and we cannot guarantee their accuracy!

The Equipment Input/Output profiles counts the engine hours. It serves only if your machine doesn't have a CAN Bus (very rare cases). In case your machine doesn't have a CAN Bus, the engine hours are counted through the alternator.

Tools recap

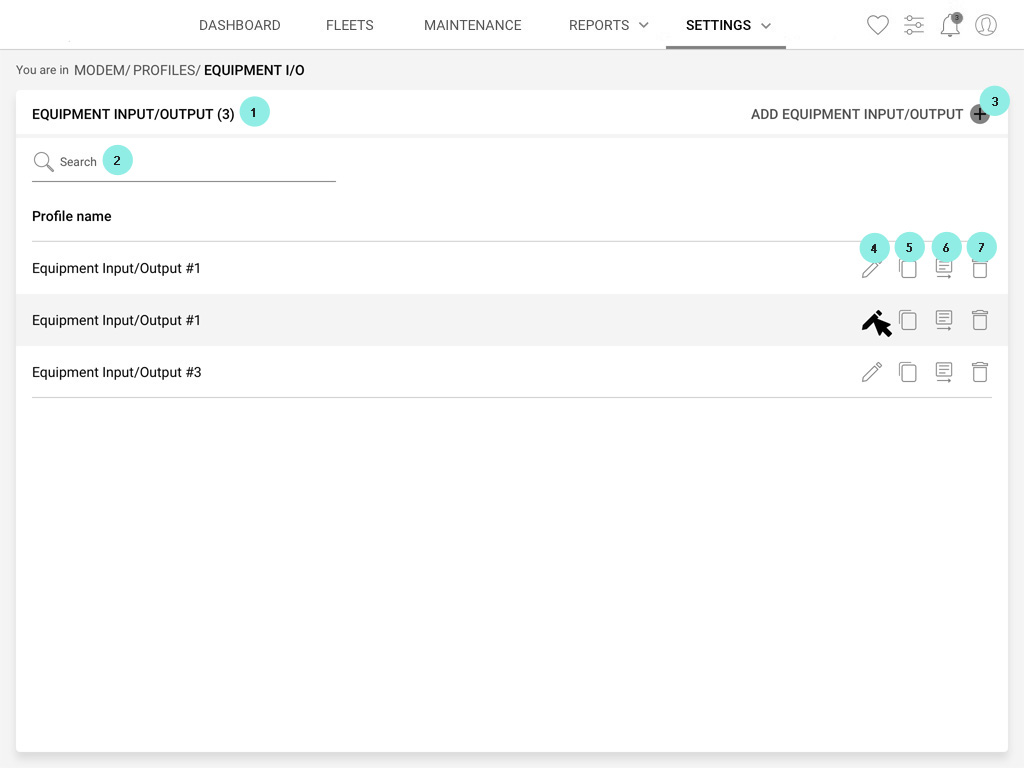

Welcome to the landing page of Equipment I/O profiles setup.

1 Between parenthesis you'll find the number of profiles you can see or edit

2 You can decide to use the search bar to find directly the profiles you want to view, edit and/or assign to one or several machines.

3 Click "+" to add a new Equipment I/O profile.

4 Click to edit a profile. If you see an eye icon it means that you can view the profiles but that you don't have the authorization to edit it.

5 Click to make a copy of this profile in the list.

6 Click to assign the Power management profile to one or several units. To know more about profiles assignment visit Settings/Modem/Profiles assignment.

7 Click to delete the profile

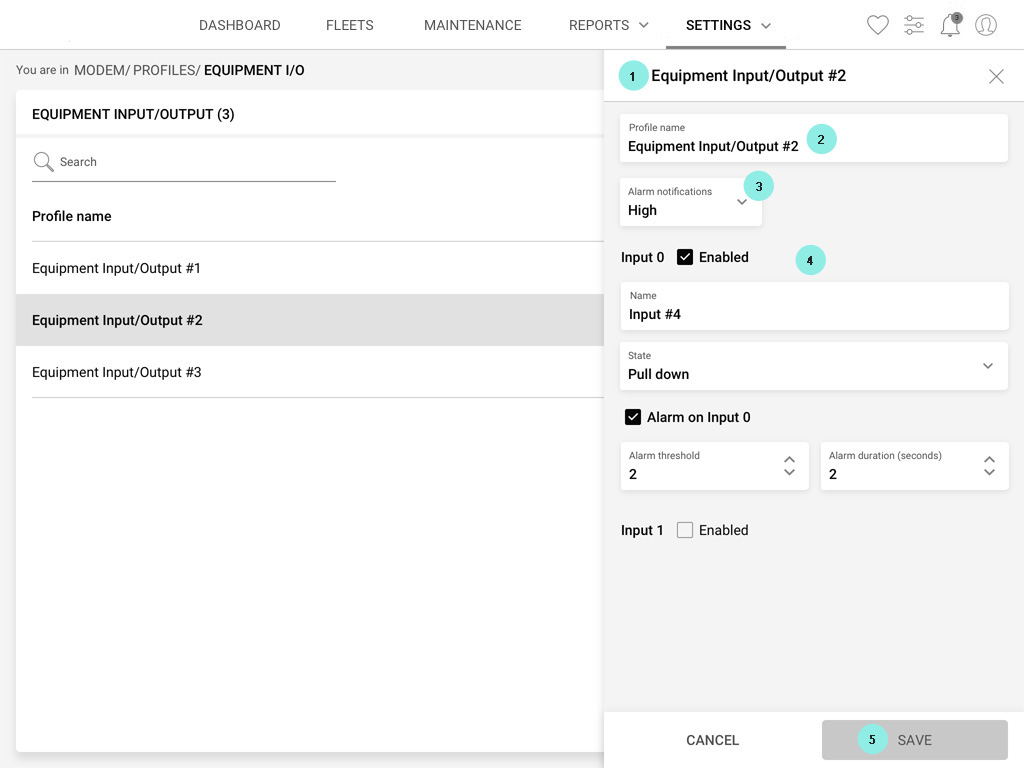

Add or edit an Equipment Input/Output profile

Once you add or edit an Equipment I/O profile (see precedent paragraph to know where to find the icons to add and edit), 1 a right hand side slide panel will come out.
The editing and creating panels have the same content.

2 Give a name to your Power management profile.

3 Choose the severity of the alarm notification you would receive.

4 Edit the fields to setup your Equipment I/O profile

5 Do not forget to save!
